IP65 Multihead Weigher Suitable For Weighing Slice, Strip, And Fluffy Material
1. Application:
Specially design for weighing salad, vegetable.
Suitable for quantitative weighing slice, strip, and fluffy material such as: cut salads, cut piece fruits, soybean, sticky products, QQ candy, metal parts, long piece products and so on.
2. Functional:
(1). Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
(2). Special revolving vibration is better for scattering material.
(3). High precision data-type weighing sensor realizes precise weighing.
(4). It can be finely regulated the opening & closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.
(5). Dimple stainless panel can help to convey and avoid damaging the product.
(6). IP65 grade water-proof &dust-proof design. It's clear and sanitary with all stainless still parts.
(7). Displaying every vibration for working performance monitor.
(8). Presetting 99 sets of parameter for programming.
(9). Multilanguage to choose: Chinese, English, Spanish, Korea, German, French and Arabic etc.
Specifications:
| Model | TY-A-M14-3；TY-A-P14-3 |
| Max. Weighing (one hopper) | 100-5000g |
| Accuracy | x (0.5) |
| Min. Scale Interval | 0.1g |
| Max. Speed | 60 WPM |
| Hopper Volume | 5.0L |
| Control System | MCU / PLC |
| HMI | 7’’ / 10’’ color touch screen |
| Power Supply | AC220V/110V ±10% 50HZ/60HZ, 2KW |
| Packing Dimension | Machine: 1,530(L)*1,530(W)*1,658(H)mm
Spare parts: 1,480(L)*1,100(W)*1,238(H)mm |
| Package weight | Machine: 600kg
Spare parts: 330kg |
Test Material:
Product Tags:
|
|

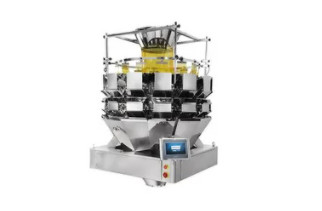

IP65 Fruit And Vegetable Packaging Machine Images
|
